Chlorinators, ejectors, automatic dosing and switchover systems, controllers, safety systems and accessories – conforming to DIN 19606 and IS 10553 Part-II.

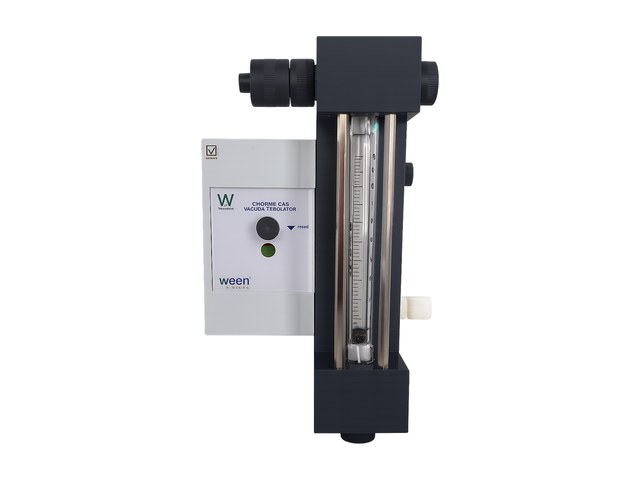

Vacuum regulators and chlorinators for direct cylinder, ton-container, wall or manifold mounting.

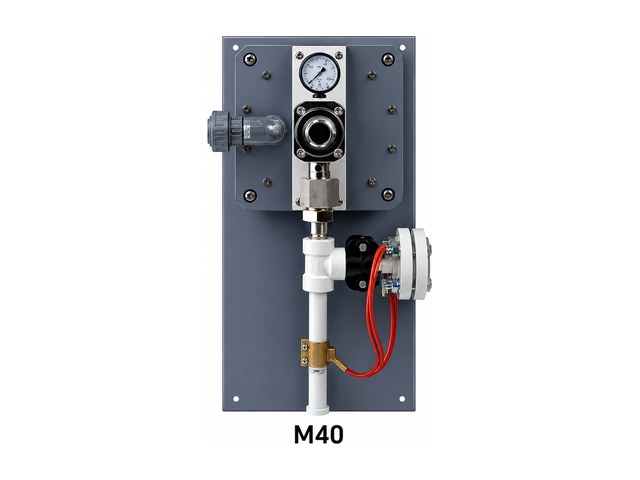

Vacuum Regulator & Chlorinator
Vacuum Regulator & Chlorinator

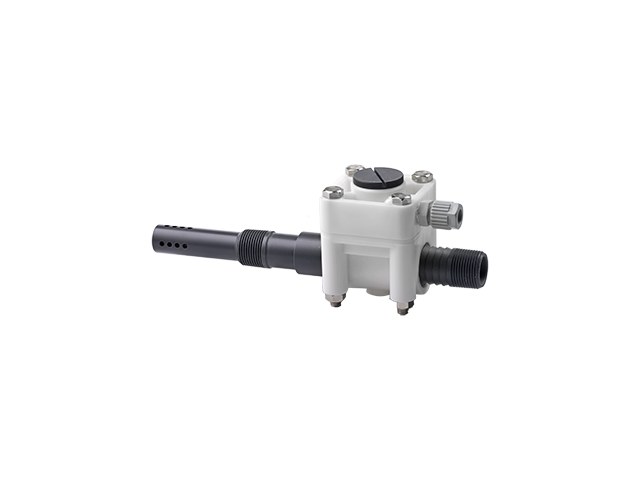

Ejectors create the vacuum that draws gas into the water stream and mix it into solution for injection.
Ejectors

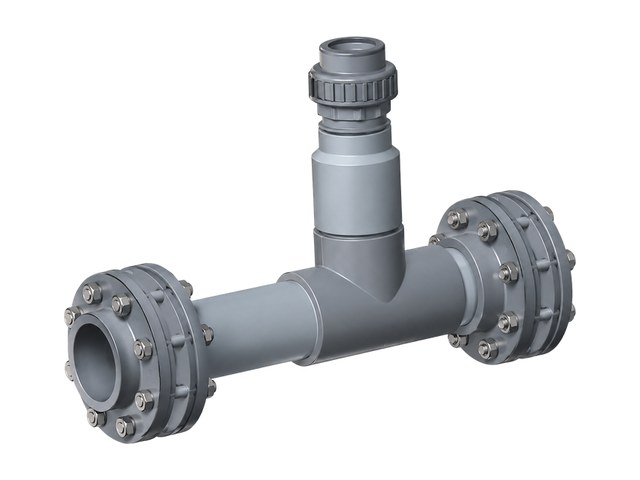

High-Capacity Ejectors

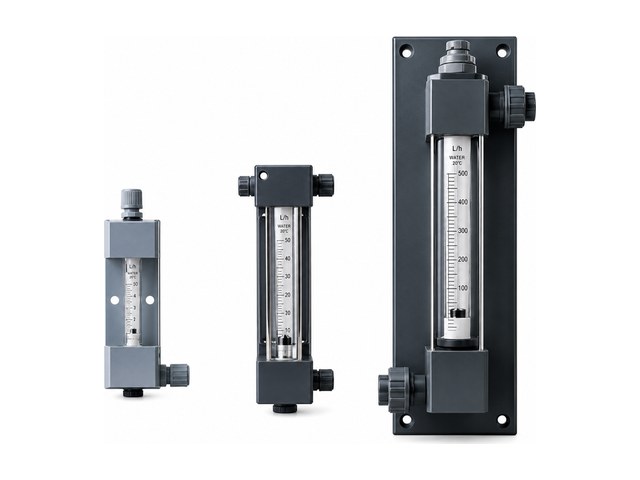

Wall-mounted remote chlorinators with flow-control rate valves.
Remote Chlorinator with Rate Valves
Automation for continuous chlorine supply and accurate, signal-controlled dosing.

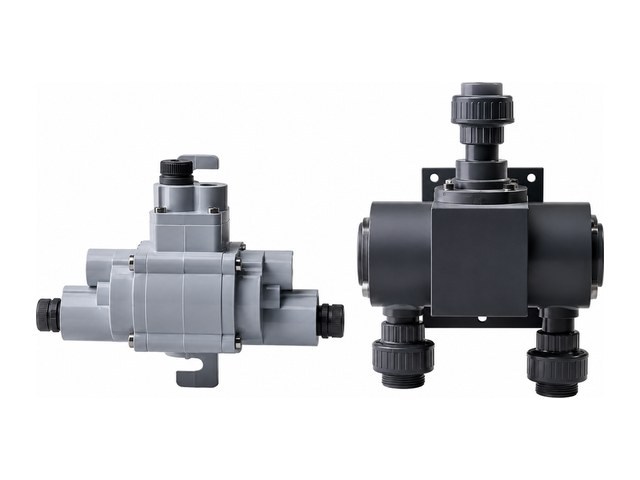

Automatic Vacuum Switchover Unit
Automatically switches chlorine feed from an empty source to a full source, without manual reset.

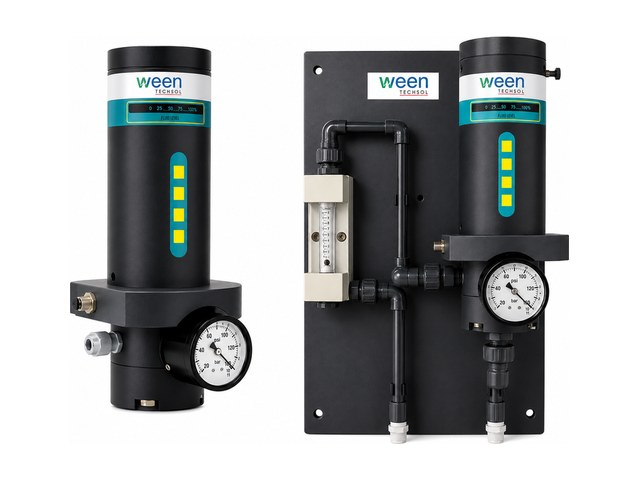

Motor-Driven Rate Valve
Electronically controlled rate valve for accurate feed of chlorine and other technical gases into water.
Controllers for flow-proportional, residual-chlorine or combined dosing control.

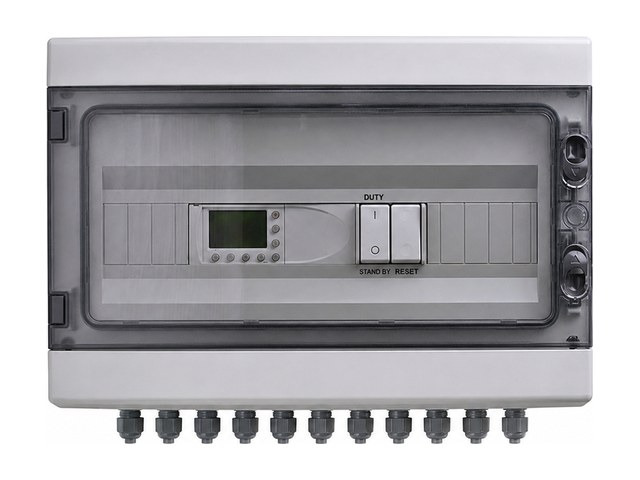

Automatic Chlorinator Controller
For potable water plants, swimming pools, wastewater plants and industry.

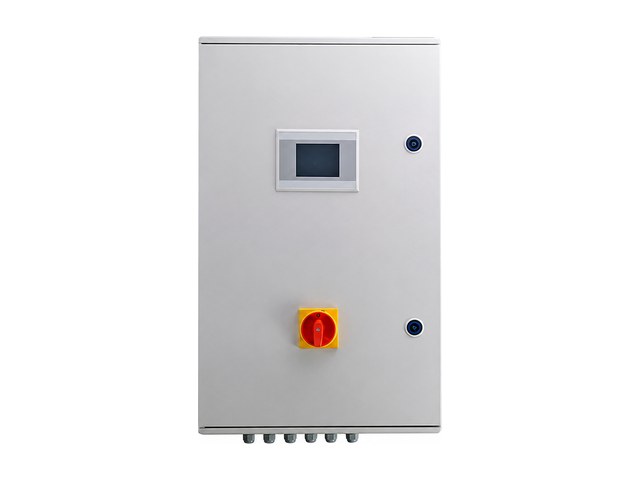

Advanced Chlorination Controller
Emergency isolation of the chlorine source and continuous residual-chlorine measurement.

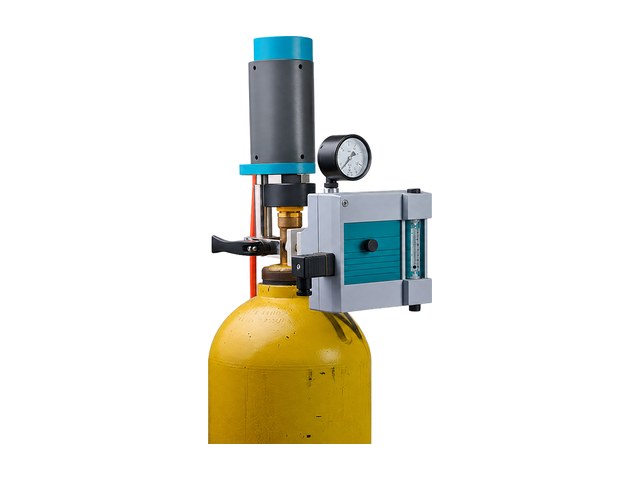

For Cylinders & Ton Containers
Works with a chlorine gas leak detector to close cylinder or container valves automatically when a leak is detected.

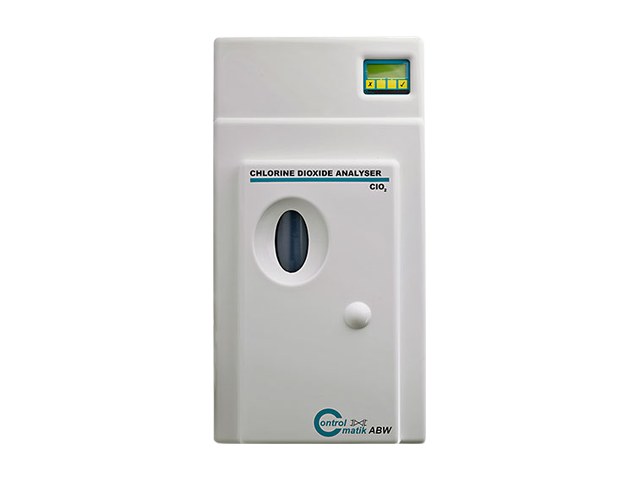

Residual Chlorine Measurement & Control
For drinking water, wastewater treatment and swimming pool applications.

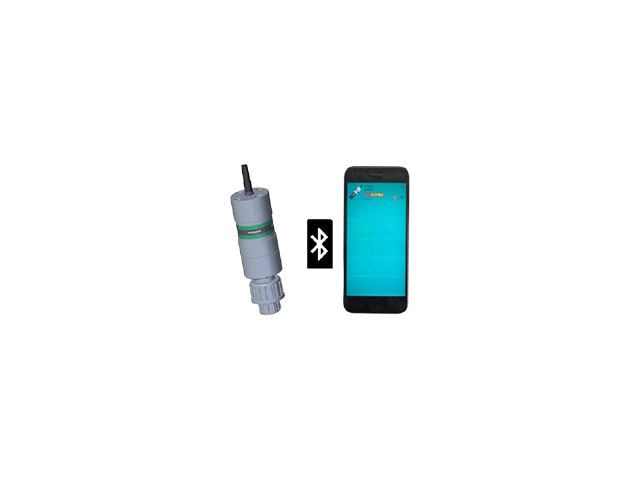

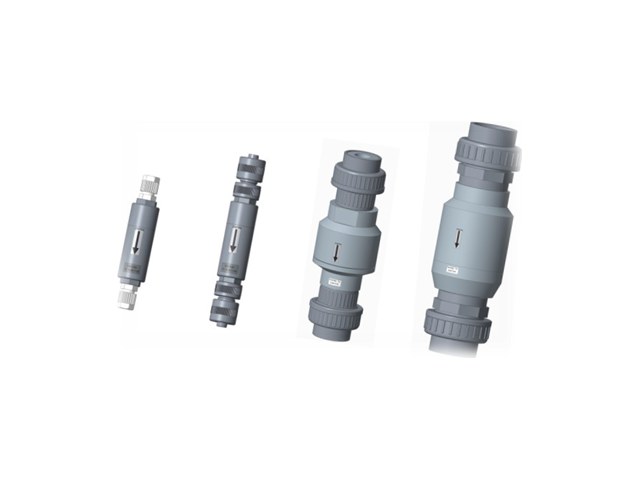

Accessories that add diagnostics and protection to the gas dosing system.
Typical chlorine dose rates for everyday use (mg/l). Actual dosage depends on water quality and chlorine demand.
| Treatment | Typical rate (mg/l) | Purpose |
|---|---|---|
| Drinking Water | Up to 5 | Pre-chlorination |
| Up to 0.5 | Post-chlorination | |
| 3 – 5 | Taste & odour control | |
| Oxidation | 2 – 10 | Iron & bacteria control |
| 0.63 × Fe | Precipitation of iron | |
| 1.3 × Mn | Precipitation of manganese | |
| 2.1 × H2S | Hydrogen sulphide odour control | |
| Wastewater | 1 – 15 | Raw sewage odour & colour |
| 3 – 10 | Primary effluent treatment | |
| 2 – 8 | Activated sludge effluent | |
| 5 – 10 | BOD reduction | |
| Cooling Water | 5 – 15 | Shock treatment |
| 3 – 5 | Continuous treatment | |
| Swimming Pool | 1 – 5 | Disinfection & algae control |
Learn how vacuum chlorination works, our solutions, applications and services.
Tell us your plant capacity, application and chlorine requirement – our team will help you select the right WEENCHLOR system and accessories.
